American DJ Quad Gem LED Moonflower Lighting

American DJ Quad Gem LED Moonflower Lighting

$35.00

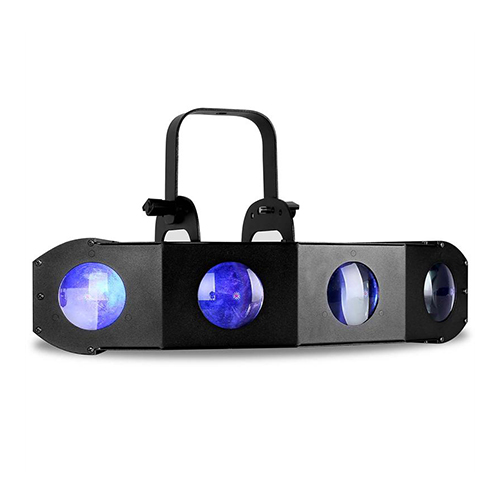

The 4-head Quad GEM DMX Moonflower effect by American DJ uses LED technology and a special glass optical system to produce sharp red, green, blue, and white beams of light, resulting in effects that can't be created with traditional halogen moonflower fixtures.

The Quad Gem has 3 operational modes: sound active with built-in programs, 4- or 7-DMX channel controlled, or via a UC3 Universal Controller (sold separately). The wide beams cover a large area, work well with or without fog, can be dimmed from 0-100%, or operate in strobe mode at adjustable speeds. The rich, saturated colors from the 224 LEDs will not fade, require little power consumption and can run all night with no need for duty cycles.

Product Description

The American DJ Quad Gem DMX is a DMX intelligent LED fixture. When using DMX mode you can choose between a 4 channel mode and a 7 channel mode. The fixture can operate in three different operating modes; stand alone, sound-active, or in a Master/Slave configuration. The Quad Gem DMX comes with several built in programs. When used as a stand alone unit or when used in multiples linked in a master/slave configuration. For best results use fog or special effects smoke to enhance the beams projections.

American DJ LED Moonflower Advantages:
• Extremely Long Life (100,000 hr. rated)
• Rich, saturated colors that will not fade
• Very low power consumption – connect more units in a single circuit
• No moving parts
• Runs extremely cool! – NO Duty Cycles! – Run all night!
• Razor sharp beams
• Use with or without fog

Specifications

• 4-head LED Moonflower effect with sharp Red, Green, Blue and White high output color beams
• 224 LEDs (80 Red, 60 Green, 48 Blue & 36 White LEDs)
• Output similar to quad 250W Halogen lamps (based on visual side-by-side comparison with halogen fixture)

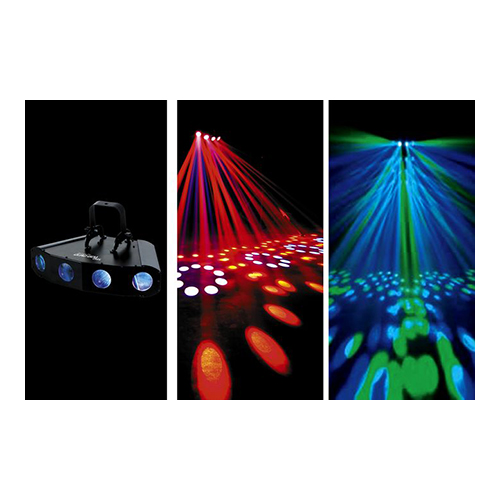

• Produces LED patterns that can be projected on a dance floor or wall
• DMX-512 protocol
• 4 or 7 DMX Channel modes
• 3 operational modes: Sound active with built-in programs; DMX Controller or UC3 Universal Controller
• Electronic dimming: 0 – 100%
• Fast to slow Strobe
• Wide beam spread covers a large area
• Sound active from built-in programs
• High output with new lens technology
• Very low power consumption
• Extreme long lifetime of the LEDs (100,000 hr. rating)
• Includes hanging bracket

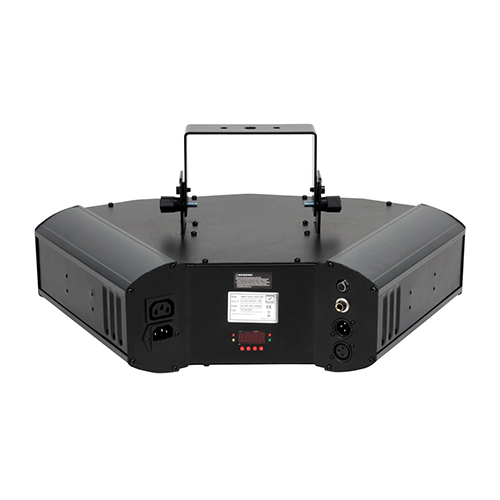

• Multi-voltage switch (120V or 230V)
• Power consumption: 20-Watts
• Dimensions (LxWxH): 18.75”x 15.5”x 4” / 473x279x103mm
• Weight: 11 lbs. / 5 kgs.

Media

Documentation

ADJ Quad Gem Lighting Manual PDF

Whats Included

1-American DJ Quad Gem LED
1-IEC Power Cable
