NEC NP600S LCD Short Throw Projector

NEC NP600S LCD Short Throw Projector

$145.00

Engage your audience during presentations with the NEC NP600S, a portable projector ideal for all types of meetings, seminars and movie night events.
This model delivers remarkably bright images and features easy-to-use networking technologies, high contrast and up to 3500 ANSI lumens. Whether in the classroom or boardroom, the NP600’s multitude of advanced technologies allows you to start up in seconds, connect with your audience and shut down with ease.

Product Description

Engage your audience during presentations with the NEC NP600S, a portable projector ideal for all types of meetings, seminars and movie night events.
This model delivers remarkably bright images and features easy-to-use networking technologies, high contrast and up to 3500 ANSI lumens. Whether in the classroom or boardroom, the NP600’s multitude of advanced technologies allows you to start up in seconds, connect with your audience and shut down with ease.

Product Identifiers
Brand NEC
Model NP600S

Key Features
Display Technology LCD
Resolution 1024 x 768
Image Brightness 3500 ANSI Lumens
Contrast Ratio 500:1
Form Factor Portable

Max Resolution 1024 x 768 (XGA)
Image Size (Diagonal) 21 in. – 300 in.
Image Aspect Ratio 4:3
HDTV Formats 1080i
Screen Distance 2.3 ft. – 36.09 ft.
Synchronization Range Horizontal 15-100 kHz
Synchronization Range Vertical 50-120 Hz
Analog Video Format NTSC, NTSC 4.43, PAL, PAL 60, PAL-M, PAL-N, SECAM

Technical Features
Platform Mac, PC
Audio Output Speaker(s)
Operation Noise 35 dB
Connectors DVI, S-Video

Interfaces
Interface Mini D-Sub 9 pin x 1 (RS-232c)
Video input 15 Pin D-Sub VGA, DVI-I, S-Video x 1

Lamp
Light Source Power 230W
Light Source Life 3000 Hours

Dimensions
Width 12.13 in.
Depth 10.31 in.
Height 3.68 in.
Weight 6.57 lb.

Miscellaneous
Features Keystone Correction
Speakers Output 7 W

Specifications

Projector Display System 0.63″ LCD
Native Resolution XGA (1024 x 768)
Number of Pixels 786,432
Lumens Brightness 2600
Contrast Ratio 600:1
Aspect Ratio 4:3
System NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
HDTV Compatibility 720p, 1080i
Lens System
Lens F = 2.3, f = 9.7mm
Focus/Zoom Adjusting Manual/Manual 1.2
Lens Shift None
Recommended Projection Size 60 – 110″
Features
Keystone Correction Automatic or manual ±20°
Ceiling Mountable Yes
Rear Screen Projection Yes
Projection Tilt Option 10° Maximum
Built-in Speaker 7-Watt Monaural

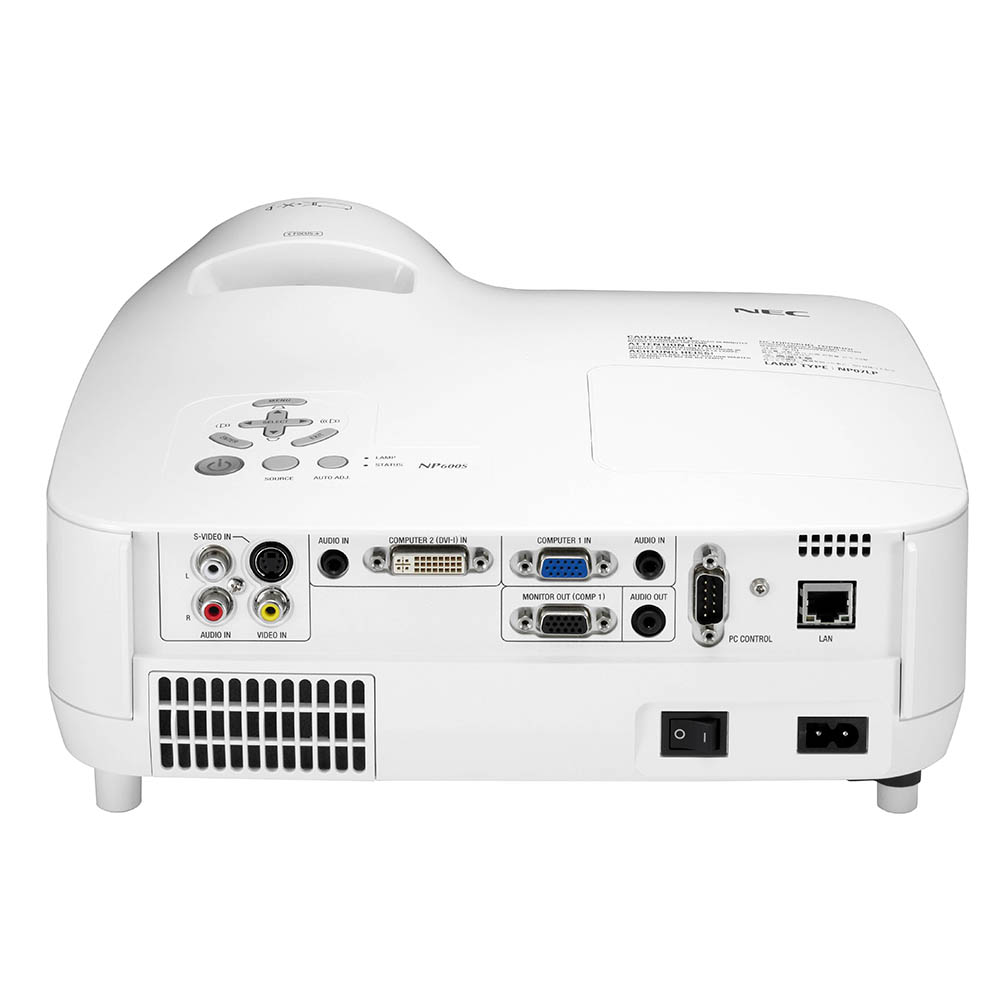

Input/Output Connectors
Input Terminals RGB (Analog 15 Pin) x 1
DVI-I w/ HDCP x 1
Video (RCA) x 1
S-Video x 1
L/R RCA (Shared by Video Sources) x 1
Audio (1/8″) x 2RS232C x 1
Output Terminals Mini Stereo VAO (Variable Audio Out) x 1
Monitor x 1RJ45 (I/O) x 1
Control Protocol DDC/CI (Via VGA Signal Cable)HTTP (VIA LAN)
General
Lamp (Bulb) 230 Watt AC
Fan Noise 29 dB in ECO Mode
Remote Control IR Wireless
Also Via VGA From PC using DDC/CI Protocol
Also VIA HTTP Over Network When Connected Via RJ45
Power Requirements 100 – 240 V AC, 50/60Hz
Dimensions (WxHxD) 12.1 x 5.4 x 11.9″ (308x 136 x 301 mm)
Weight 7.3 lbs (3.3 kg)

Documentation

NEC NP600S Manual PDF

NEC NP600S Quick Setup Manual PDF

Whats Included

1-NEC NP600S Projector
1-Power Cord
1-VGA Cable 6′
