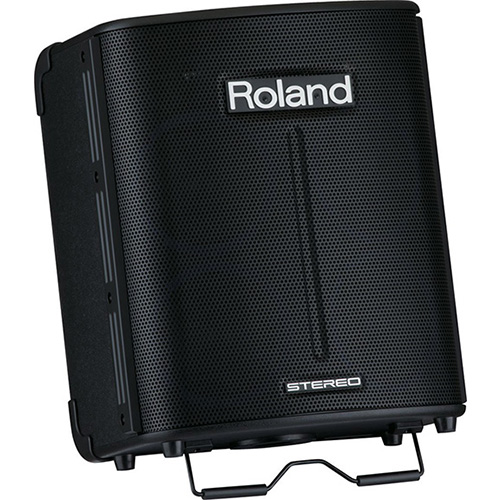

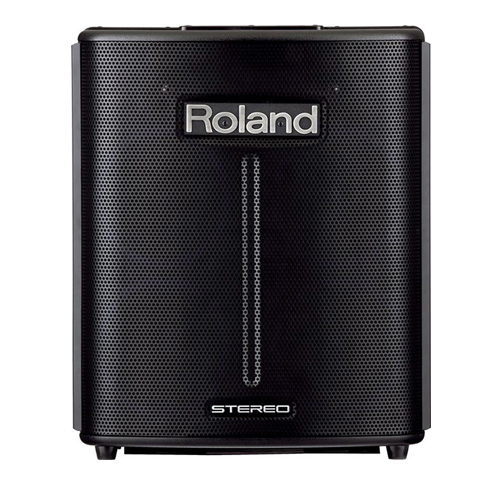

Roland BA330 Portable Digital PA Speaker System

Roland BA330 Portable Digital PA Speaker System

$95.00

Whether battery powered or plugged in, the BA-330 delivers high-performance sound that defies its size. Its digital stereo amplifier drives four 6.5” stereo speakers and two tweeters, positioned for wide stereo projection. It’s the ideal, all-in-one portable PA solution for small music venues, worship events, conferences, seminars, business meetings, and much more.

Product Description

Powered by AC power or 8 AA batteries, the all-in-one Roland digital PA system is suitable for use anywhere. The PA system’s powerful high-quality stereo sound supports music for audiences of up to 80 people. No setup is required, just plug in and go. The Roland BA-330 has 3 high-quality effects built in: Reverb, Delay, and Wide. The effects can be turned on or off independently for each channel. In addition, Roland provides a master 2-band EQ and EQ control for each channel.

Whether battery powered or plugged in, the BA-330 delivers high-performance sound that defies its size. Its digital stereo amplifier drives four 6.5” stereo speakers and two tweeters, positioned for wide stereo projection. It’s the ideal, all-in-one portable PA solution for small music venues, worship events, conferences, seminars, business meetings, and much more.

Specifications

Speakers
16 cm (6.5 inches) x 4, Tweeter x 2
Input/Output Level
Nominal Input Level (1 kHz) CH 1, CH 2 MIC: -50 dBu, CH 1,CH 2 INST: -20 dBu, CH 3/CH 4, CH 5/CH 6: -20 dBu, AUX IN: -10 dBu, STEREO LINK IN: -10 dBu Nominal Output Level (1 kHz) LINE OUT: -10 dBu, STEREO LINK OUT: -10 dBu
Controls
POWER SwitchChannel Controls CH1,CH2: MIC/INSTRUMENT Switch, EFFECT Switch, TONE Knob, VOLUME Knob, CH3/CH4, CH5/CH6: EFFECT Switch, TONE Knob, VOLUME KnobMaster Controls Equalizer (LOW Knob, HIGH Knob), VOLUME Knob, ANTI FEEDBACK Switch, EFFECT Knob, BATTERY CHECK/MUTE Switch, OUTPUT POWER SwitchAUX IN Control LEVEL Knob
Indicators
BATTERY, BATTERY CHECK/MUTE, POWER
Connectors
CH 1, CH 2: Input Jacks (XLR type, 1/4” TRS phone type) CH 3/CH 4, CH 5/CH 6: Input Jack L/MONO (1/4” phone type), Input Jack R (1/4” phone type) AUX IN: Input Jacks (Stereo miniature phone type, RCA phono type) Output: LINE OUT Jack L/MONO (1/4” phone type), LINE OUT Jack R (1/4” phone type) STEREO LINK: STEREO LINK OUT Jacks L/MONO, R (1/4” phone type), STEREO LINK IN Jack (1/4” phone type) FOOT SWITCH: FOOT SWITCH Jack (1/4” phone type) DC IN: DC IN Jack
Power Supply
Power Supply DC 12 V
Dry battery LR6 (AA) type (alkaline) x 8,
Rechargeable battery HR6 (AA) type (nickel metal hydride) x 8,
or AC AdaptorCurrent Draw 410 mAExpected battery life under continuous use Alkaline: approx. 8 hours (MAX), approx. 12 hours (ECO)
Nickel-metal hydride: approx. 10 hours (MAX), approx. 15 hours (ECO)
* These figures will vary depending on the actual conditions of use
Others
Accessories AC Cord, AC Adaptor, Owner’s Manual
Size and Weight
Width (W)415 mm16-3/8 inchesDepth (D)357 mm14-1/16 inchesHeight (H)509 mm20-1/16 inchesWeight 13.8 kg30 lbs. 7 oz.
Weight excluding batteries.

* 0 dBu= 0.775 Vrms

All specifications and appearances are subject to change.

Whats Included

1-Roland BA 330 Speaker
1-AC Adapter/Power Cord
8-AA Batteries
