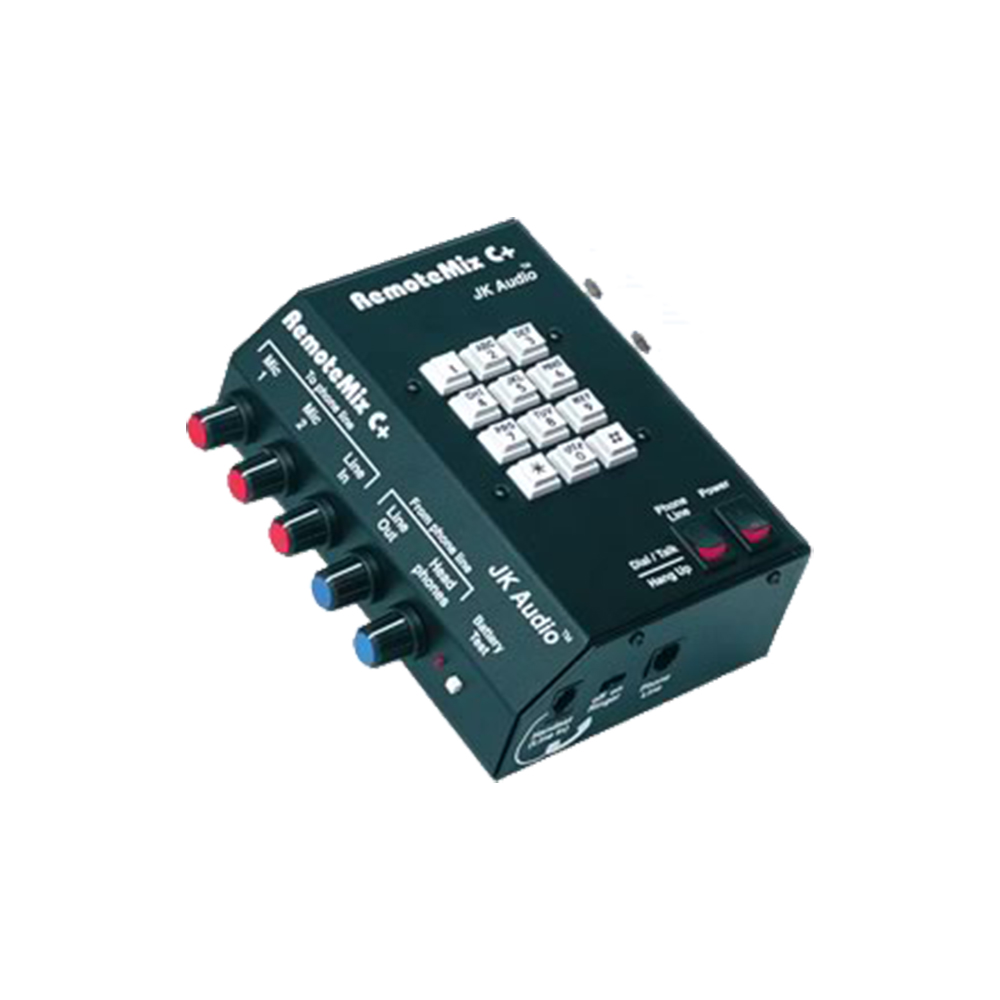

A Portable Mixer for Remote Telephone Broadcasts by JK Audio.

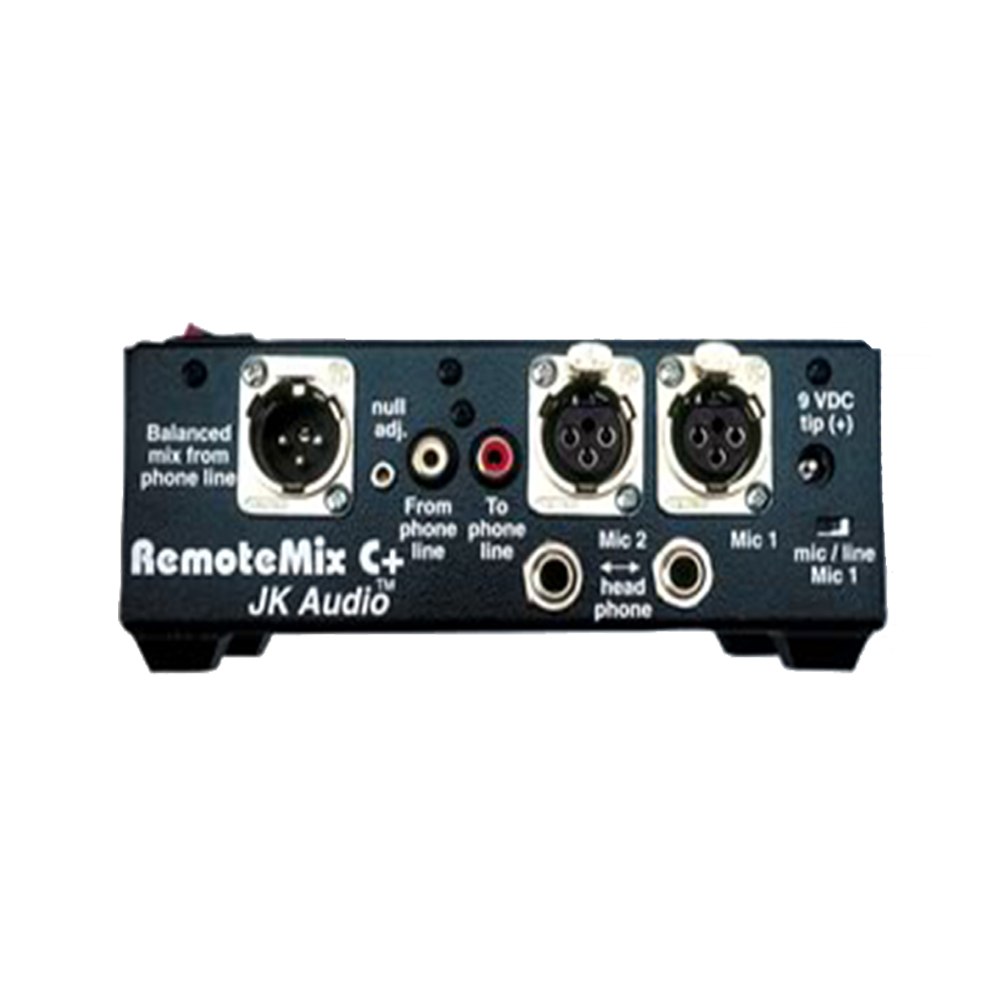

Simply plug your audio equipment into RemoteMix C+ and connect to a phone line. You can now put on headphones, plug in a microphone, and you are ready to broadcast the game or talk up a recorded interview. The RCA type jacks on RemoteMix C+ are equivalent to the jacks found on most recorders, CD players, and receiver/amplifiers. There are two balanced XLR microphone inputs and the first one can be switched for mic or line level input. The balanced
line level XLR output jack provides a high quality connection to mixers and professional gear. The adjustable hybrid circuit provides control over the mix of transmit and receive audio at the output jacks.
Specification:
Input 2 x XLR Microphone (input 1 switchable between line/microphone)
1 x RCA Line
Output 1 x XLR
1 x RCA
2 x1/4″ TRS phone Headphone
Handset No
Isolation 1500 VAC
Phone Line RJ-11C
Impedance Microphone Input: 1kΩ, -10mV RMS
Line Input: 20kΩ, 250mV RMS
XLR Output: 200Ω, 500mV RMS
RCA Output: 200Ω, 250mV RMS
Headphone Output: 8 Ω
Power Requirements 2 x 9V batteries – provides for approximately thirty-six hours of operation
Includes external power supply
Dimensions (WxDxH) 6.5 x 4.6 x 2.2″ (165 x 117 x 56mm)
Weight 1.8 lbs (0.8 kg)
