Description

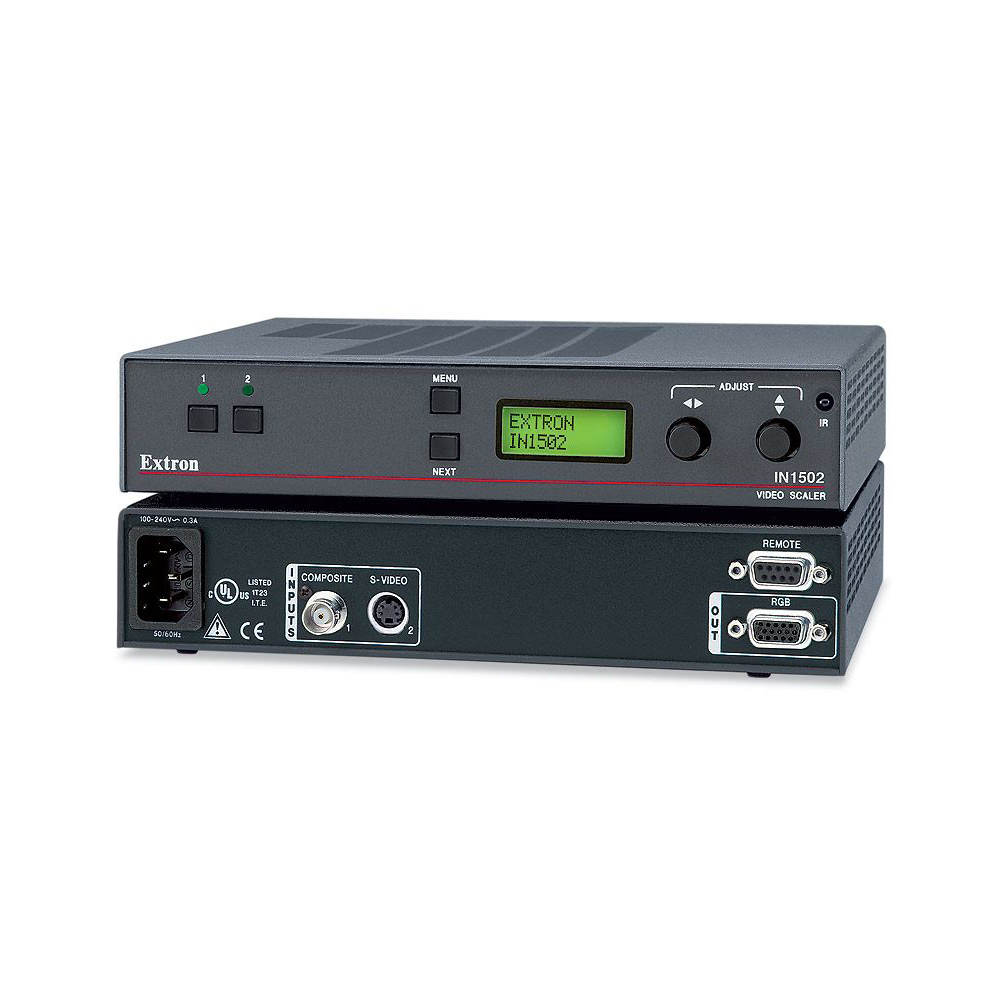

The Extron IN1502 Two Input Video Scaler provides high performance scaling of composite video and S-video signals. A host of integrator friendly features, including input source autoswitching, comprehensive picture controls, and RS-232 control make the IN1502 ideal for integrated systems.
The IN1502 employs sophisticated video processing, including DMI™ – Dynamic Motion Interpolation, to create a single, optimally scaled output to match the native resolution of the display. Selectable output rates are available from 640×480 to 1366×768 resolution.
Convenient control of the IN1502 is available via the front panel, RS-232, and contact closure. The IN1502 is housed in a rack-mountable 1U, half rack width enclosure and is equipped with an internal power supply.
Features
Inputs: Composite video on BNC, S-video on 4-pin mini DIN
Outputs: Scaled RGB output on 15-pin HD
Scales composite video and S-video sources
Selectable RGB output rates from 640×480 to 1366×768
Autoswitching between inputs — The IN1502 can automatically switch between input sources upon detection of active sync signals.
Frame rate conversion — The IN1502 provides frame rate conversion of the incoming video signal to the selected output refresh rate.
Quad standard video decoding — The IN1502 uses a digital, four-line adaptive comb filter to decode NTSC 3.58, NTSC 4.43, PAL, and SECAM for integration into systems worldwide.
DMI™ – Dynamic Motion Interpolation — DMI technology is an advanced motion detection and compensation method used to deliver the best aspects of still and motion video.
Picture controls for brightness, contrast, color, tint, detail, and horizontal and vertical positioning and sizing
3:2 NTSC and 2:2 PAL pulldown detection — Advanced film mode processing techniques help maximize image detail and sharpness for NTSC or PAL sources that originated from film.
LCD menu display — Provides easy menu access and navigation for simplified set-up.
Front panel security lockout — This feature locks out all front panel functions except for input selection; all functions however, are available through RS-232 control.
Internal universal power supply — The 100-240 VAC, 50/60 Hz,
