Description

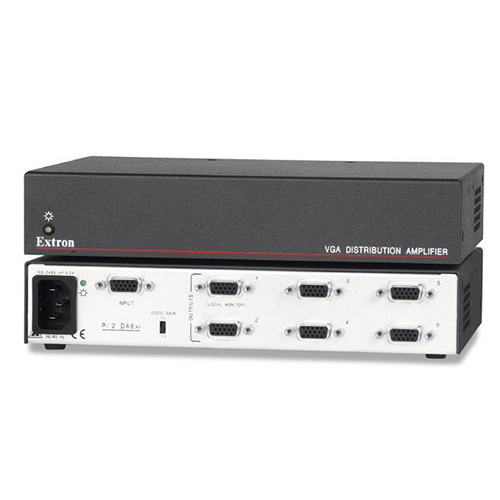

The Extron P/2 DA6xi is a one input VGA distribution amplifier that splits a signal and distributes it to six separate outputs. With 350 MHz (-3 dB) of RGB video bandwidth, fully loaded, the P/2 DA6xi is compatible with VGA-QXGA graphic cards, projectors and flat panel displays. Each output is individually buffered and amplified to help maintain the original signal integrity and eliminate noise interference. The P/2 DA6xi also includes a video gain switch which boosts the signal for long cable runs.
Features
Input: One female 15-pin HD connector
Output: Six female 15-pin HD connectors
350 MHz (-3 dB) RGB video bandwidth, fully loaded
Compatible with VGA-QXGA resolutions
Drives outputs up to 250 feet (75 meters)
Video gain switch
Internal universal power supply
ID Bits routed to local monitor output
Rack and under-desk mountable
1U, half rack width 6″ deep metal enclosure
