JK Audio Innkeeper 1rx Digital Hybrid Phone Coupler System

JK Audio Innkeeper 1rx Digital Hybrid Phone Coupler System

$70.00

A digital hybrid phone coupler system with common-sense features. Check out the front-panel headphone jack and volume control. You can monitor either the send signal, the caller’s voice, or a mix of the two. The output is also sent so you can easily add a monitor speaker.

Product Description

The Innkeeper 1rx gets audio in and out of analog telephone lines. Its excellent caller audio output does not exhibit the transmit/receive crosstalk common to analog hybrids. This makes innkeeper 1rx perfect for radio or television talk shows, teleconferencing, or auto-answer IFB feeds.

The main function of any hybrid is to bring in the caller’s voice from the phone line, as clear and clean as possible. In the real world, when you send your voice down the telephone line it has a tendency to bleed over into the caller’s audio. The hybrid must adapt to the phone line in order to properly separate transmit and receive audio. We use a 16-bit DSP to monitor the phone line and audio signals continuously in order to deliver excellent separation. Our dual-convergence echo canceller algorithm can achieve excellent transhybrid loss, typically exceeding 50 dB, without any setup and without sending a burst of noise into the phone line.

From the front panel you can control on-hook/off-hook, and adjust headphone volume. Front panel LEDs display signal levels and option status. The Send and Caller Volume controls are hidden behind an access panel to discourage unauthorized “tweaking”. Five feature switches are also hidden behind the access panel.

AGC (Automatic Gain Control) adjusts the caller volume to an average level. AGC will tame a loud caller, and boost a quiet caller or quiet long distance connection.

Caller Ducking drops the Caller output level by 9 dB whenever the host speaks. This keeps the host “in charge” of the show, automatically making sure the caller never overpowers the host by attempting to talk over the host’s voice.

Press the “Presence” button and you’ll get a richer sound from the caller’s voice. This digital filter brings back some of the low-end lost in transmission.

The Test Tone generator sends a 1 kHz full level tone either down the phone line or out the Caller XLR jack. This tone represents the maximum level transmit into the phone line or out the XLR jacks. The Test Tone generator is not required for tuning the digital hybrid.

Auto-Answer simply answers on the first ring and disconnects at the end of the call.

A digital hybrid phone coupler system with common-sense features. Check out the front-panel headphone jack and volume control. You can monitor either the send signal, the caller’s voice, or a mix of the two. This output is also sent to the rear panel screw terminals so you can easily add a monitor speaker.

And possibly the coolest feature: the innkeeper 1x can be remote controlled by either the optional Guest Module 1, the RIU-IP remote interface, or the included RS-232 cable. The Guest Module 1 allows remote Call, Drop, and DTMF dialing while the RIU-IP allows control of all functions of the innkeeper 1x through your web browser whether it is directly connected to your computer or via the internet from around the world.

Excellent separation of caller and talent voice
16-bit DSP technology
Proprietary auto null algorithm, 50 dB
Balanced XLR mic/line input
Balanced XLR caller output
Balanced XLR user-defined output
Front-panel headphone jack

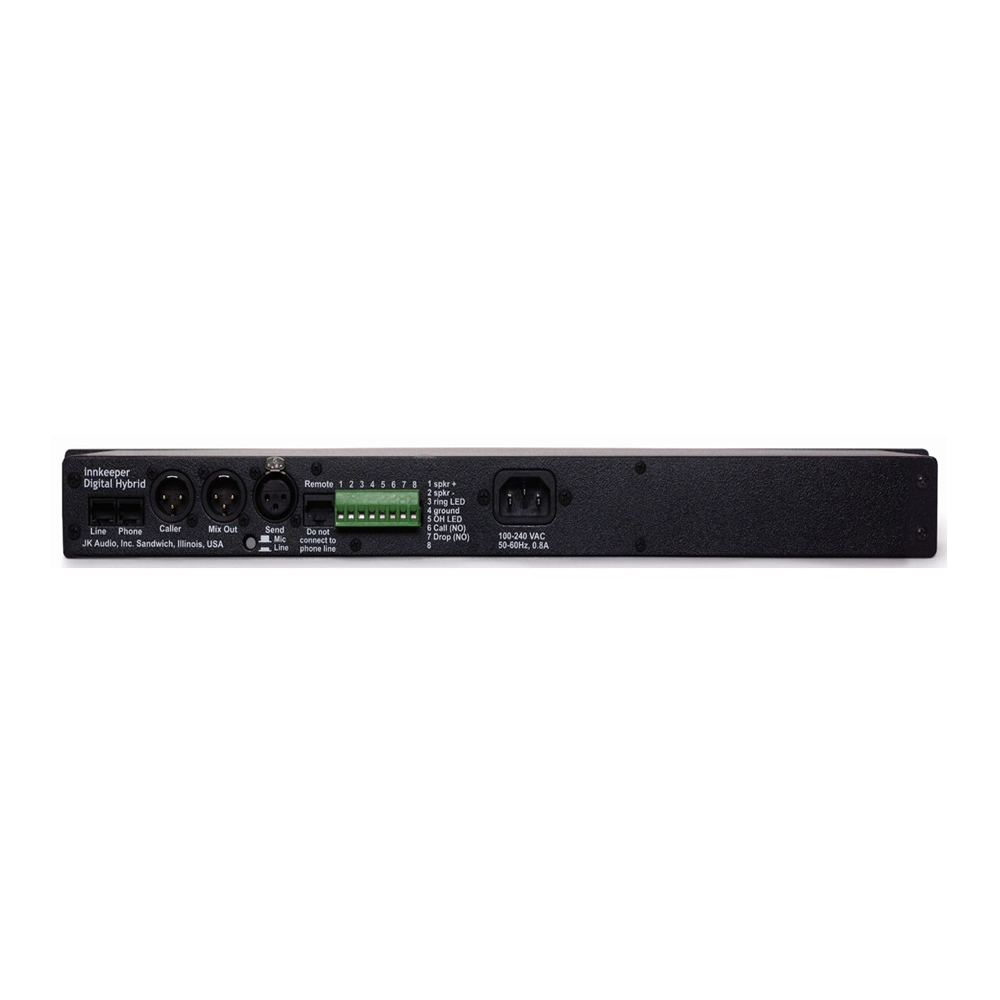

Monitor speaker terminals on back
Voice Presence Compensation
Input/output LEDs
Remote control screw terminals
Remote control jack for Guest Module, RS-232 or optional IP remote
Auto answer/disconnect
AGC, Presence, Ducking, Tone Generator

Specifications
Inputs:
Mic/Line:
Mic/Line: Female XLR 15 mV RMS (-34dBu) nom
Mic/Line pad switch, Line =+6 dBu max
Outputs:

Caller Out:
Caller Out: Male XLR 200 ohms, 500 mV RMS
(-4dBu) nom. +14 dBu max
Mix Out:
Male XLR 200 ohms, 500 mV RMS (-4dBu) nom. +14 dBu max
Headphone:
1/4″ Stereo 8 ohms, 250 mW per channel
Speaker:
Screw Terminals 8 ohms, 1 watt

Phone Line Connector:
RJ11C
Isolation:
1500 VAC
Ringer:
0.8B REN
Frequency Response, Telephone Side:
200 Hz–3600 Hz
Power:
Universal AC power input (120–240 VAC, 50–60 Hz)
Size:

innkeeper 1x:
1.75″ x 7.3″ x 10.5″ (4.5 x 18.6 x 26.7 cm)
innkeeper 1rx:
1.75″ x 7.3″ x 19″ (4.5 x 18.6 x 48.3 cm)
Weight:

innkeeper 1x:
5.2 pounds
innkeeper 1rx:
5.7 pounds
