Yorkville AP812 12 Channel Powered Mixer

Yorkville AP812 12 Channel Powered Mixer

A powered mixer perfect for Live Events, Theatre and DJ Applications

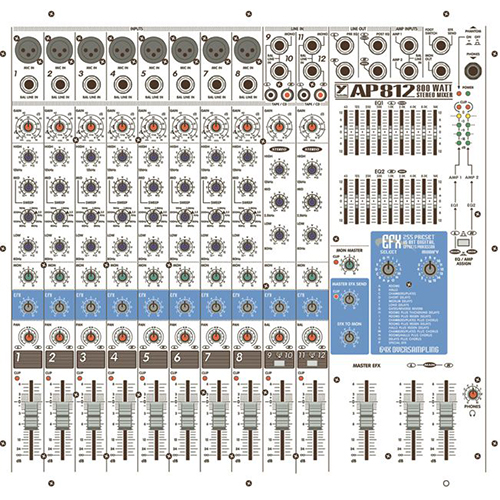

The YorkvilleAP812 includes all of the power and features with eight mono channels. Channels 9 to-12 are configured in stereo with cueing switches and RCA inputs for disc jockey and/or live theater applications.

Product Description

A powered mixer perfect for Live Events, Theatre and DJ Applications. The Yorkville AP812 includes all of the power and features with eight mono channels. Channels 9 to-12 are configured in stereo with cueing switches and RCA inputs for disc jockey and/or live theater applications.

A powered mixer perfect for Live Events, Theatre and DJ Applications. The YorkvilleAP812 includes all of the power and features with eight mono channels. Channels 9 to-12 are configured in stereo with cueing switches and RCA inputs for disc jockey and/or live theater applications.
Audiopro mixers deliver the power and features required for today’s pro audio applications. Rubberized colour-coded rotary knobs and 60mm slide pots offer silky smooth operation. Internal SilentFan™ cooling provides quiet operation along with functional graphics and a non-slip wrist-rest.

Features:
– Patching includes switchable mains / monitor amp assignment along with enough inputs and outputs for external audio processing.

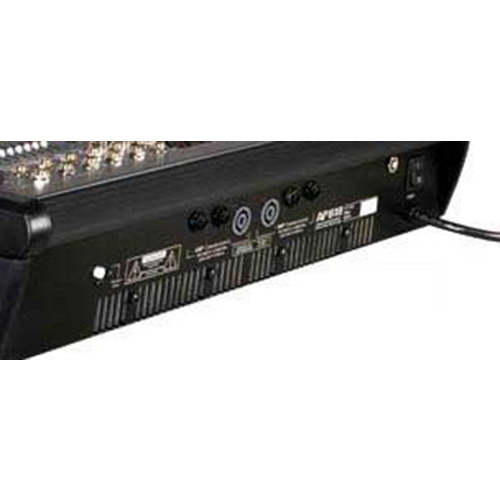

– Speakon™ and 1/4″ phone jacks are rear-mounted for convenient speaker output.
– Inside, SilentFan™ cooling assures quiet, reliable performance.
– Two assignable 9-band graphic equalizers.
– A 255-preset digital effects processor with foot switchable in/out.
– Phantom power.
– Effects return fader.
– Headphone jack.
– Two LED VU meters.
– Easy access top-mounted input / output jacks.
– Rubber-surround rotary knobs.
– Smooth faders and 19″ mountable

Specifications

Number of Channels 12
Mono Channel EQ (ch.1 to 8) Low, Sweep Mid, High
Stereo Channel EQ (ch. 9/10 & 11/12) Low, Mid, High
Channel Effects All Channels
Monitors Effects Yes
Balance Controls 9 to 12
Pan Controls 1 to 8
Inputs – XLR (bal) Ch. 1 – 8
Inputs – 1/4″ Ch. 1 – 12
Inputs – RCA (unbal) 2 Stereo Sets
Clip / Mute LED All Channels
Phantom Power 24 V + LED indicator
VU Meter 2 x 5 LED
Headphone Monitor Features Cue , Volume
Internal Effects Digital 16 Bit; 255 Effects
Effects Send 1 Internal/External
Reverb / Effects Footswitch Yes
Max Gain to Line Out -Mic Input (dB) 63
Max Gain to Line Out -Line Input (dB) 45
Master EQ -1 (type/Channels/Range -dB) Graphic / Mono / 9 Band 63 Hz – 16,000 Hz
Master EQ -2 (type/Channels/Range -dB) Graphic / Mono / 9 Band 63 Hz – 16,000 Hz
Main Outputs (Line Level) 4 , 1/4 inch (TRS) 2 pre, 2 post EQ
Main Amp Inputs (Line Level) 2 , 1/4 inch (TRS)
Monitor Outputs (Line Level) 1, 1/4 inch (TRS)
Outputs – Amp A – 1/4″ Jacks 2
Outputs – Amp A – Speakon 4-pin 1(Euro only)
Outputs – Amp B – 1/4″ Jacks 2
Outputs – Amp B – Speakon 4-pin 1 (Euro only)
Mixer – Signal to Noise Ratio (dB) greater than 100
Mixer – Freq Resp (Tone and EQ Flat,±2dB) 20 Hz – 20,000 Hz
Mixer- Input Ref Noise to line out @150 Ohms(dBv) -117
Mixer THD (Main out w/ -10dB input) less than 0.03%
Amp A-Power Output@8 Ohms (0.1 PER THD 1kHz) 240
Amp A – Power Output @ 4 Ohms 455
Amp B-Power Output@8 Ohms (0.1 PER THD 1kHz) 240
Amp B – Power Output @ 4 Ohms 455
THD – 1kHz (dB) less than 0.03%
THD – 20Hz-20kHz (dB) less than 0.1%
Hum and Noise (un / Aweight -dB) -98
Typical crosstalk -1 kHz (dB- -66
Input Impedance – Bal/Unbal (Ohms) 22,000 – 12,000
Input Sesitivity (Vrms Sine) 1.47 V
CMRR @ 60Hz (min/typ) 54 dB / 66 dB
Max Votage Gain (dB) 29
Power Consumption (typ/max) 660 VA / 1200 VA
Protection Thermal / Load / DC
Cooling Variable Speed DC Fan
Transformer Type Toroidal
Finish Scratch Resistant Vinyl-Coated Aluminum
Chassis Construction Steel
Rackmount Yes (RK812)
Other Features Selectable stereo mains or mono main & monitor.
Dimensions (DWH, inches) 18 x 19 x 5.5
Dimensions (DWH, cm) 45.7 x 48.3 x 14
Weight (lbs/kg) 37 / 16.8

Documentation

Yorkville AP812 Powered Mixer Manual

Whats Included

1- Yorkville AP812 Powered Mixer
